Jquery画折线图 柱状图 饼图的方法

jquery功能非常强大,可以使用前端实现以往需要后端才能实现的功能,这里就讲解下如何用jQuery来实现折线图,饼图,柱状图

用到的文件:

js.zip

首先引入需要的两个JS文件

<script type="text/javascript" src="js/jquery-1.4.2.min.js"></script>

<script type="text/javascript" src="js/highcharts.js"></script>

然后进入各图表生成

一、折线图

<div style="margin: 0 2em">
        <div id="container" style="min-width: 400px; height: 400px; margin: 0 auto"></div>
    </div>
    <script type="text/javascript">
    $(document).ready(function() {
    var xx = [];
    var yy = [];
      for (var i = 1; i <$('#table tr').length; i++) {
                        xx.push(parseFloat($('#table tr').eq(i).children("td").eq(0).text().trim()));
                        yy.push(parseFloat($('#table tr').eq(i).children("td").eq(2).text()));
                    }

                    console.log(xx);console.log(yy);
       var chart;
        chart = new Highcharts.Chart({
        chart: {
            renderTo: 'container',
            type: 'line',
            marginRight: 220,
            marginBottom: 25
            },
         title: {
            text: '指标点达成度曲线线图',
            x: -20 //center
            },
          xAxis: { //X轴数据
            categories: xx,
            },
          yAxis: { //Y轴显示文字
            lineWidth: 2,
            title: {
                    text: '达成度'
                   }
           },
           tooltip: {
             formatter: function() {
                   return '<b>' + this.x + '</b><br/>' + this.series.name + ': ' + Highcharts.numberFormat(this.y, 0);
                    }
             },
           plotOptions: {
                column: {
                  dataLabels: {
                          enabled: true
                              },
                     enableMouseTracking: true //是否显示title
                         }
                         },
             legend: {
                            layout: 'vertical',
                            align: 'right',
                            verticalAlign: 'top',
                            x: -20,
                            y: 200,
                            borderWidth: 2
                      },
              series: [{
                     name: '达成度',
                     data: yy
                      }]
            });
        });

</script>

3.结果截图

4.理解

两个数组x[]和y[],将数据放到里边然后调用就可以了。


二、柱状图

需要在引入一个js文件



<script src="js/exporting.js" type="text/javascript"></script>



代码:



$(document).ready(function() {

                     var xx = [];
                     var yy = [];
                    for (var i = 1; i <$('#table tr').length; i++) {
                        xx.push(parseFloat($('#table tr').eq(i).children("td").eq(0).text().trim()));
                        yy.push(parseFloat($('#table tr').eq(i).children("td").eq(2).text()));
                    }
                                var chart;
                                chart = new Highcharts.Chart({
                                    chart: {
                                        renderTo: 'containerliuliang',
                                        //放置图表的容器
                                        plotBackgroundColor: null,
                                        plotBorderWidth: null,
                                        defaultSeriesType: 'column' //图表类型line, spline, area, areaspline, column, bar, pie , scatter
                                    },
                                    title: {
                                        text: 'JQuery柱状图演示'
                                    },
                                    xAxis: { //X轴数据
                                        categories: xx,
                                        lineWidth: 2,
                                        labels: {
                                            align: 'right',
                                            style: {
                                                font: 'normal 13px 宋体'
                                            }
                                        }
                                    },
                                    yAxis: { //Y轴显示文字
                                        lineWidth: 2,
                                        title: {
                                            text: '浏览量/次'
                                        }
                                    },
                                    tooltip: {
                                        formatter: function() {
                                            return '<b>' + this.x + '</b><br/>' + this.series.name + ': ' + Highcharts.numberFormat(this.y, 0);
                                        }
                                    },
                                    plotOptions: {
                                        column: {
                                            dataLabels: {
                                                enabled: true
                                            },
                                            enableMouseTracking: true //是否显示title
                                        }
                                    },
                                    series: [{
                                        name: '总流量',
                                        data: yy
                                    }]

                                });
                                //$("tspan:last").hide(); //把广告删除掉

                });





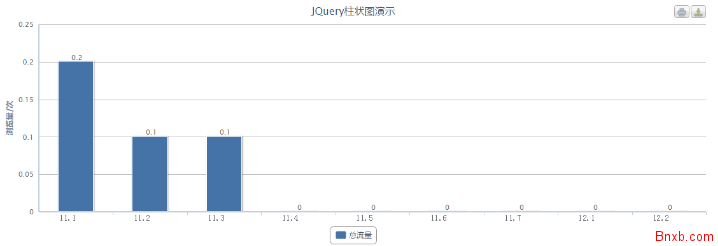

结果截图

6.饼图

代码:


(function($) { // encapsulate jQuery
    $(document).ready(function() {
       var xx = [];
                     var yy = [];
                    for (var i = 1; i <$('#table tr').length; i++) {
                        xx.push(parseFloat($('#table tr').eq(i).children("td").eq(0).text().trim()));
                        yy.push(parseFloat($('#table tr').eq(i).children("td").eq(2).text()));
                    }
                    var chart;
                    chart = new Highcharts.Chart({
                        chart: {
                            renderTo: 'container',
                            plotBackgroundColor: null,
                            plotBorderWidth: null,
                            plotShadow: false
                        },
                        title: {
                            text: '数据饼状图表'
                        },
                        tooltip: {
                            formatter: function() {
                                return '<b>' + this.point.name + '</b>: ' + this.percentage.toFixed(2) + ' %';
                            }
                        },
                        plotOptions: {
                            pie: {
                                allowPointSelect: true,
                                cursor: 'pointer',
                                dataLabels: {
                                    enabled: true,
                                    color: '#000000',
                                    connectorColor: '#000000',
                                    formatter: function() {
                                        return '<b>' + this.point.name + '</b>: ' + this.percentage.toFixed(2) + ' %';
                                    }
                                }
                            }
                        },
                        series: [{
                            type: 'pie',
                            name: 'pie',
                            data:   yy
                        }]
                    });

    });
})(jQuery);

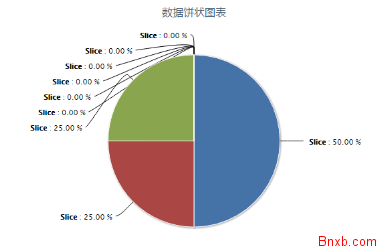

结果截图



<
